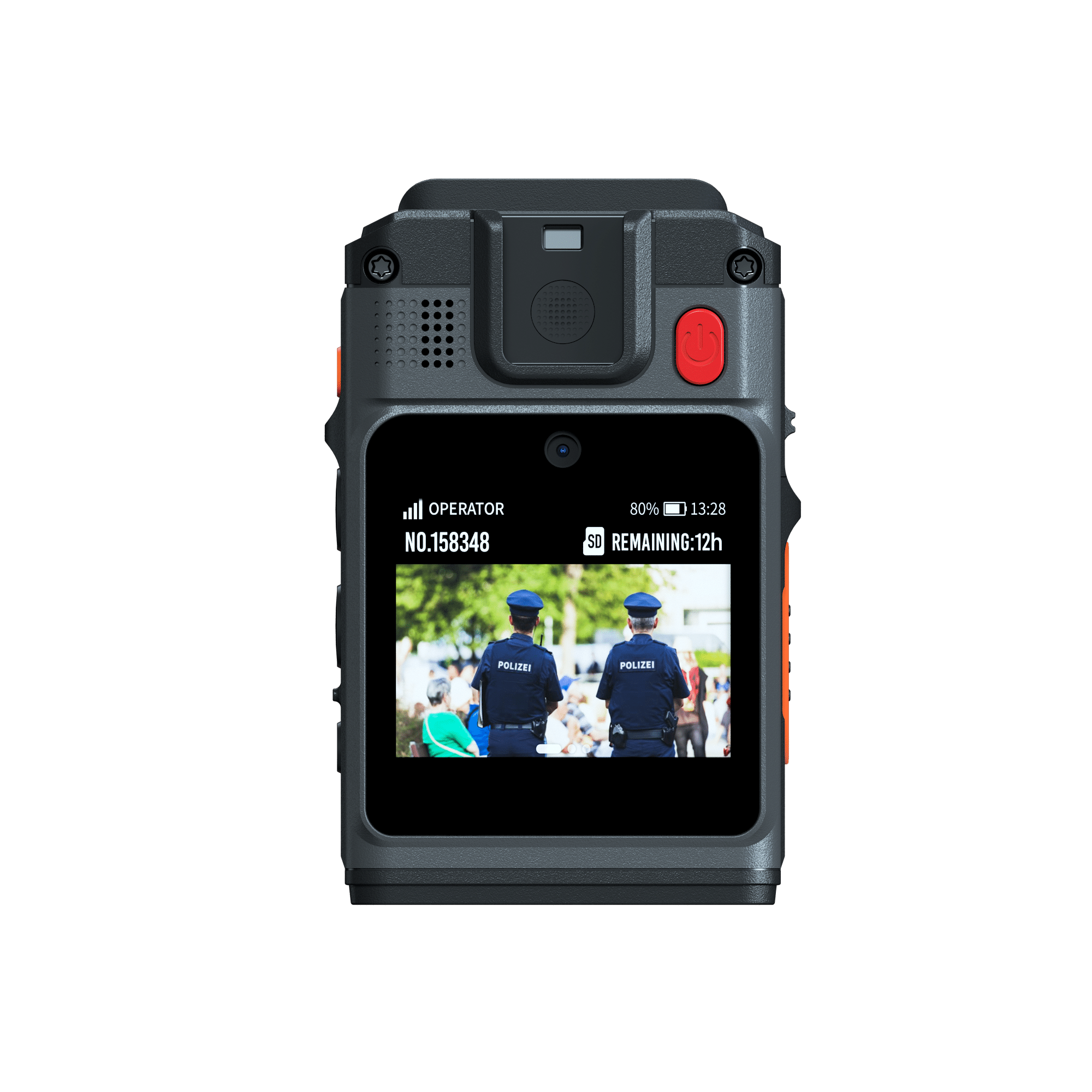

SC580 Smart 4G Body Camera
It is a smart 4G body camera, that captures and streams videos, audio, and photos from the field to the command center over the cellular network or WLAN. Weighing just 158g allows officers to comfortably hold it in their hand or wear the uniform all day long without any burden. In such a thinner body, the body camera is equipped with a 3,200 mAh battery that extends an entire shift and beyond.
Leveraging the Hytera PTToC application and cellular network, the body camera works as a two-way radio to deliver PTT services between the officer and dispatcher for better collaboration.
PUSH-to-TALK BUTTON
RECORD AUDIO
TAKE PHOTO
VIDEO SWITCH
CLEAR AUDIO
3500 mAh BATTERY
HD VIDEO
LCD TOUCH SCREEN
Charging and Data Export
EMERGENCY BUTTON
CHARGING CONTACT
Functions
Push-to-Talk Functionality
With the Hytera Push to talk over cellular application, the multipurpose body camera works as a PoC radio and enables officers to instantly communicate across the team with a single push on the PTT button. Its dual microphones and noise cancellation algorithm enable SC580 to deliver crystal clear audio in noisy environments.
Energy Optimization
The high capacity 3,200 mAh battery and the power consumption optimization feature, allows the body camera to record videos for up to 10 hours in a row.
Crystal Clear Video Even in Dim Settings
The body camera captures crisp-clear, colorful images with details even in the darkness due to its starlight standard sensor. *Only available for SC580 starlight night version.
Record with Image Stabilization
With the 6-axis image stabilization technology, this body camera captures stable and clear videos even when the user is on the move. With more than 500% gimbal stability compared to OIS provides clearer color vision in low light conditions.
Never Miss a Second
Pre-event recording enables the body camera to automatically capture video and audio up to 120 seconds before a recording is manually activated. It ensures crucial events are captured and recorded as completely as possible – even before pressing the recording button, especially when the scene unfolds suddenly.
Record and Stream Simultaneously
Enabled by Hytera’s innovative dual-stream technology, the body camera records and stores footage locally, while streaming video.
BUILT-IN GPS POSITIONING
Built-in GPS enables nationwide dispatching and location tracking
WATERMARK STAMPING
Users can choose to stamp different watermarks on videos and photos, such as Date and Time, Device ID or User ID
Standard Accessories for SC580 Smart 4G Body Camera
Audio
EHU03
C-style earset
C-style earset with USB port
Carrying
RO04
Leather Wrist Strap
Leather wrist strap
RO01
Wrist Strap
Nylon wrist strap
BC40
Belt Clip
Belt Clip
Battery
BP3501
Lithium-Polymer Battery (3500mAh)
Lithium-Polymer Battery with 8 hour operating time (3500mAh)
Charger
MCL30
Multi-unit Charger
Multi-unit Charger with Data Interface
Optional Accessories for SC580 Smart 4G Body Camera
Audio
EHU03
C-style earset
C-style earset with USB port
Battery
BP3501
Lithium-Polymer Battery (3500mAh)
Lithium-Polymer Battery with 8 hour operating time (3500mAh)
Carrying
BC40
Belt Clip
Belt Clip
RO01
Wrist Strap
Nylon wrist strap
RO04
Leather Wrist Strap
Leather wrist strap
Charger
MCL30
Multi-unit Charger
Multi-unit Charger with Data Interface
Systems that work with SC580 Smart 4G Body Camera
Systems
Hytera HyTalk Nationwide
Hytera HyTalk OnSite and OnSite Plus
Own Your Own Push-to-Talk over Cellular System
Hytera HyTalk Connect
Integrates DMR Radio networks with Push-to-Talk over Cellular and third party networks
HyTalk PoC Dispatch
Web-based PoC Dispatching Application
Technical Specifications
| Dimensions(H×W×D) mm | 91mm x 55mm x 29mm |
| Weight | 158 g; 177 g (with belt clip) |
| Memory | RAM: 2 GB; ROM: 16 GB; Storage Card: 32GB/64GB/128GB/256GB |
| Peripheral Interface | Type-C. Supporting OTG output |
| Display | 2.0-inch |
| Camera | Front camera x 1 ; Rear camera x 1 |
| Battery | 2.8-inches |
| Screen Resolution | 3,200 mAh |
| Video File Types | MP4 |
| Image File Types | JPG |
| Image Resolution | Up to 36 MP |
| Display | 2 inch |
| Camera | Image sensor: 4 megapixels; Lens: fixed focus, full glass; infrared night vision :124° (Diagonal) |
| Battery | 2100 mAh |
| Charging Time | ≤4 h (5V1A); ≤2.5 h (5V2A) |
| Video File Types | 802.11 b/ g/ n |
| Video Encoding Technology | BT4.2 |
| Image File Types | Micro USB, 4-pin contact port |
| Image Resolution | Up to 36 MP |
| Video Resolutions and Frames Per Second | 1080p@30fps, 720p@30fps ,480p@30fps |
| WLAN | 802.11 a/b/g/n/ac |
| BlueTooth | BT 5.1. Supporting BLE. |
| Positioning | GPS/BDS/GLONASS/A-GPS |
| Operating Temperature | -20°C to +60°C |
| Dust & Water Protection | IP68 |
| Vibration,Drop&Shock | 2 meters drop test |
