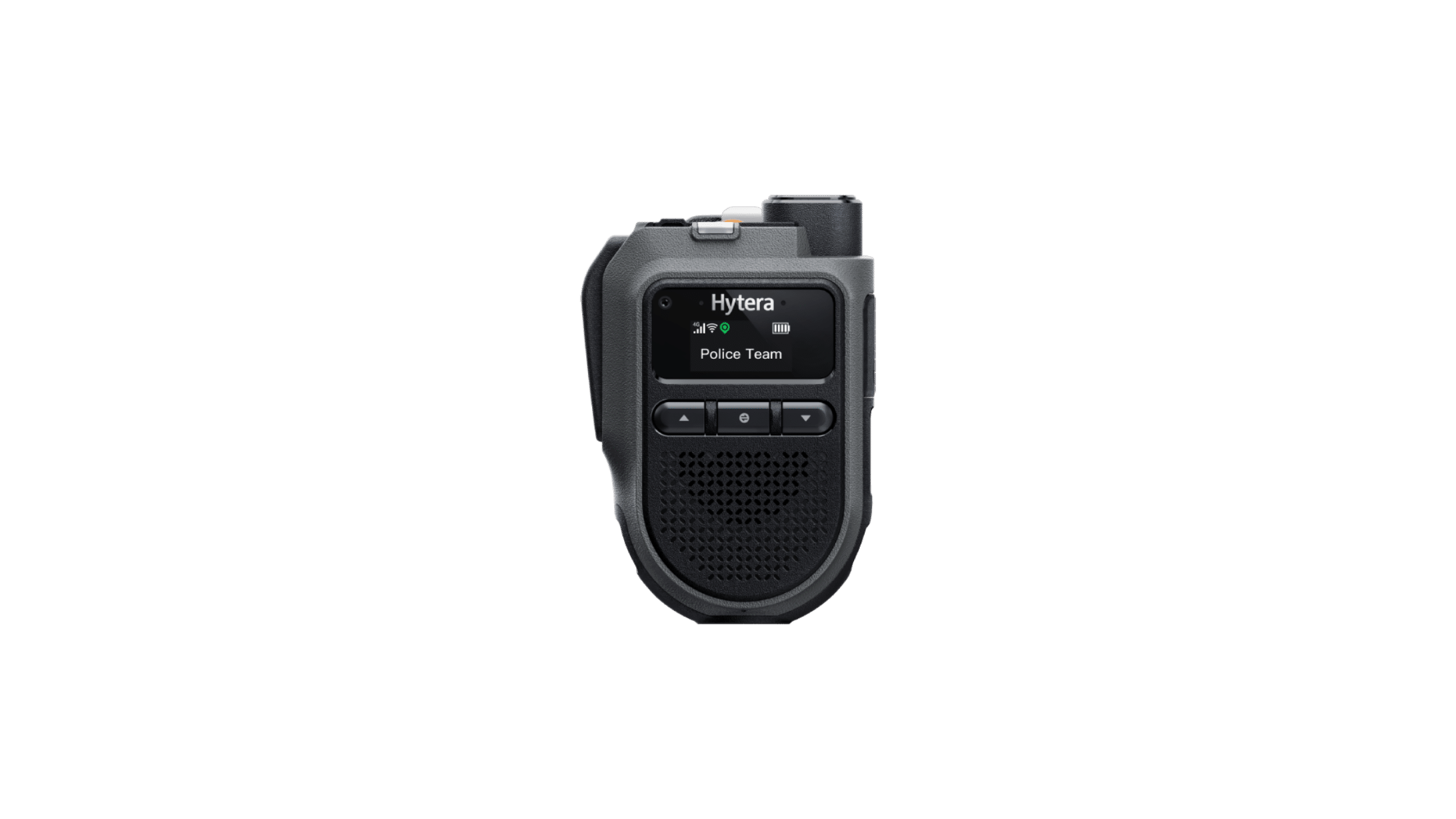

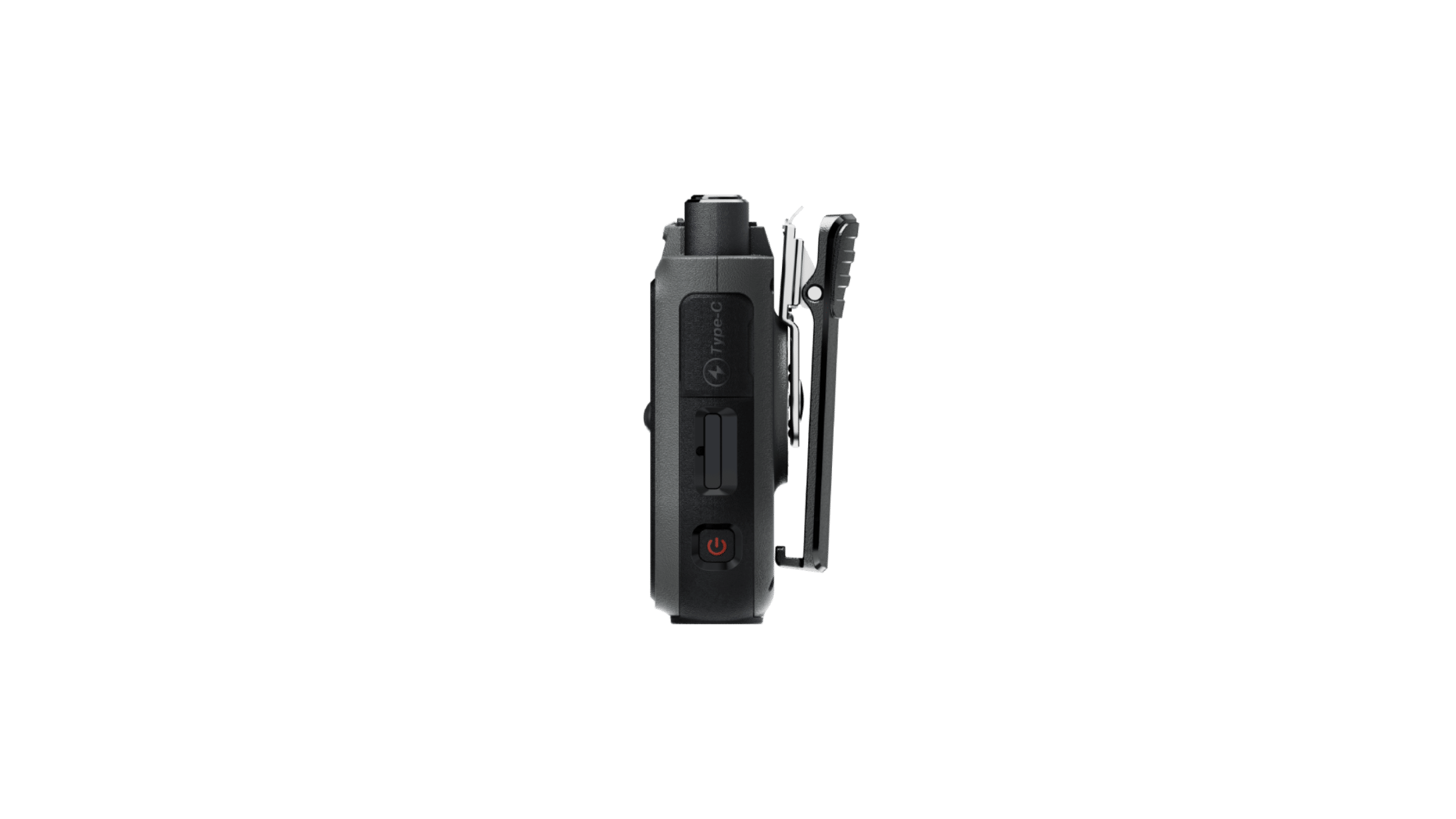

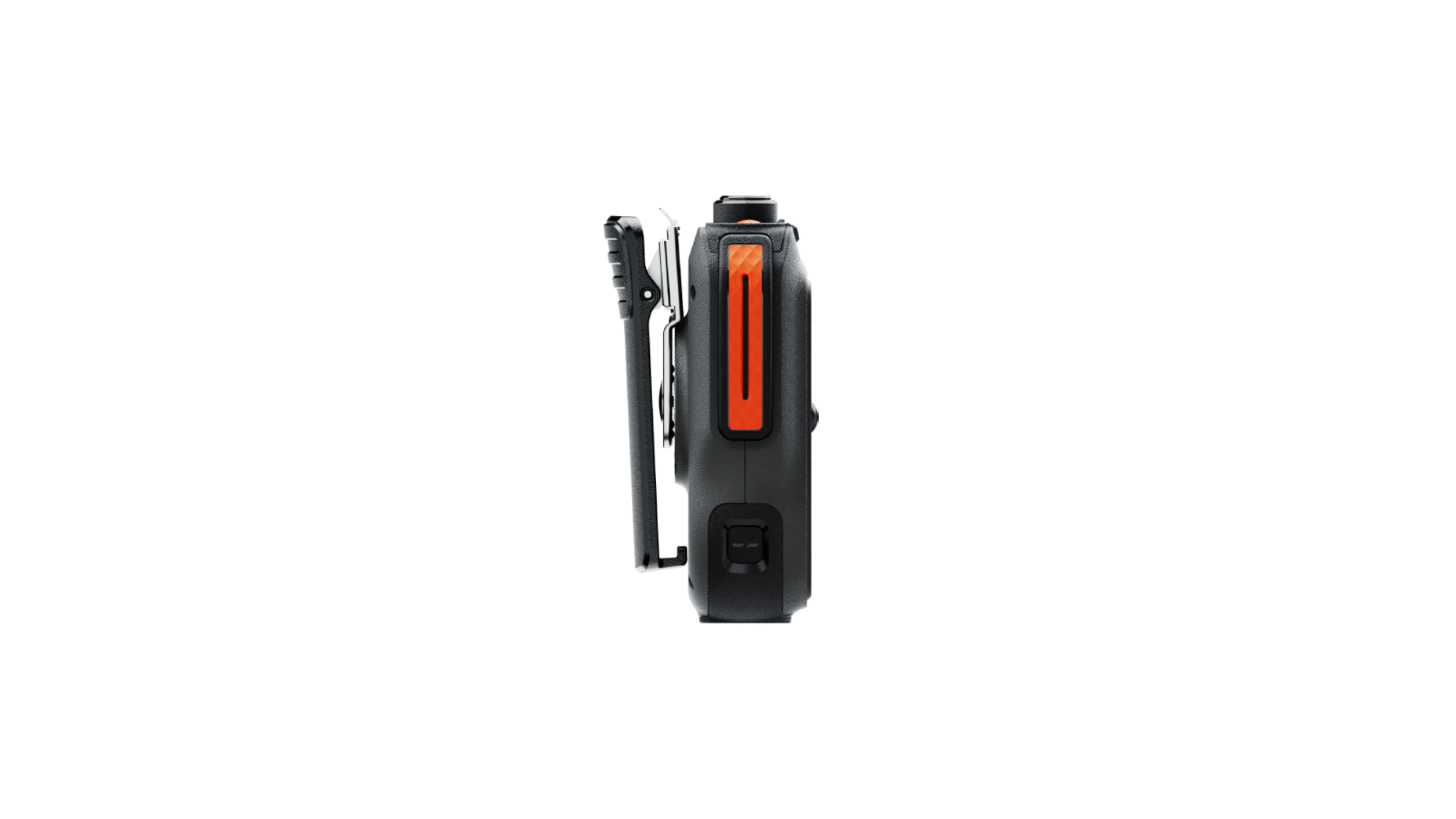

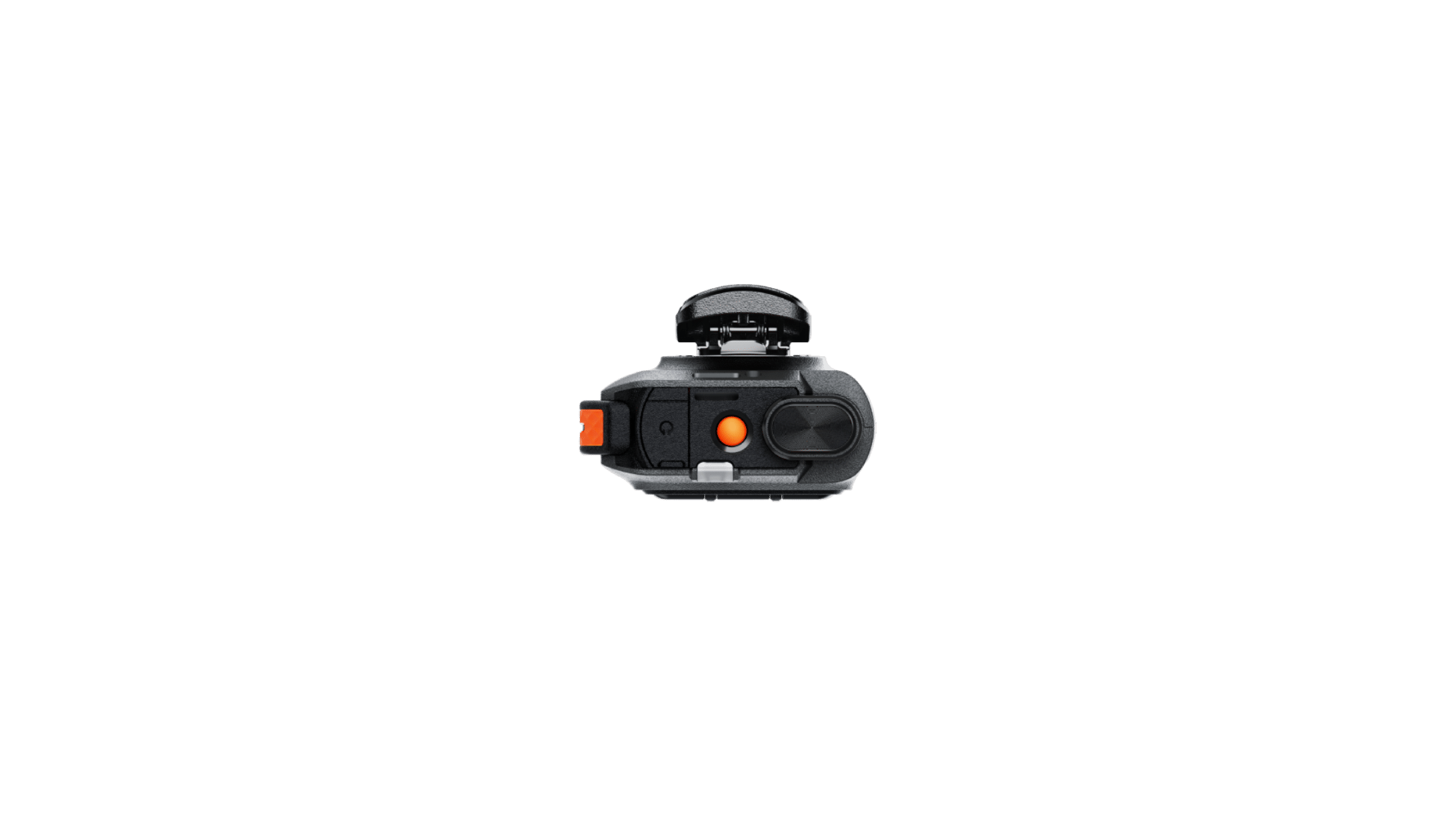

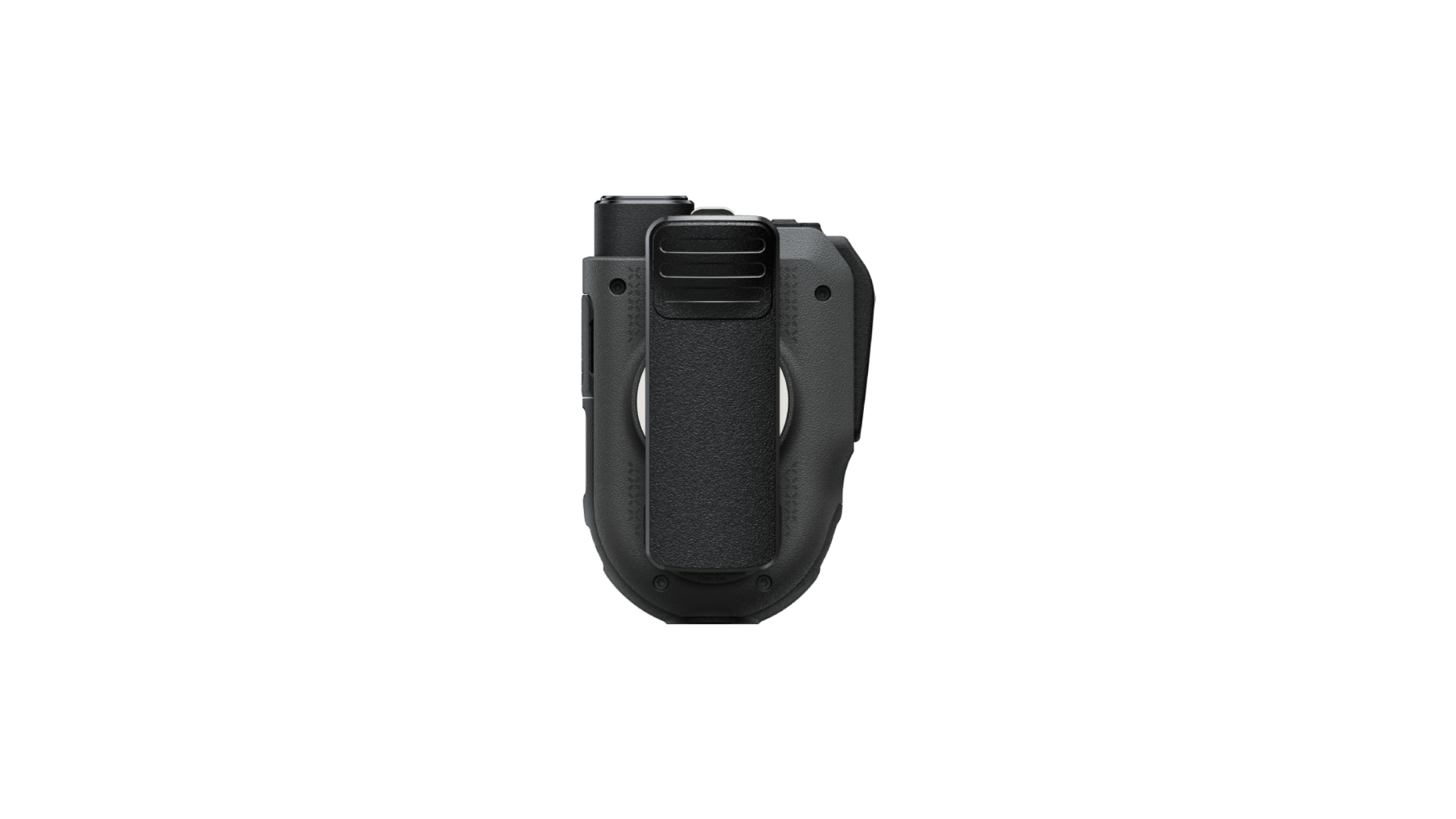

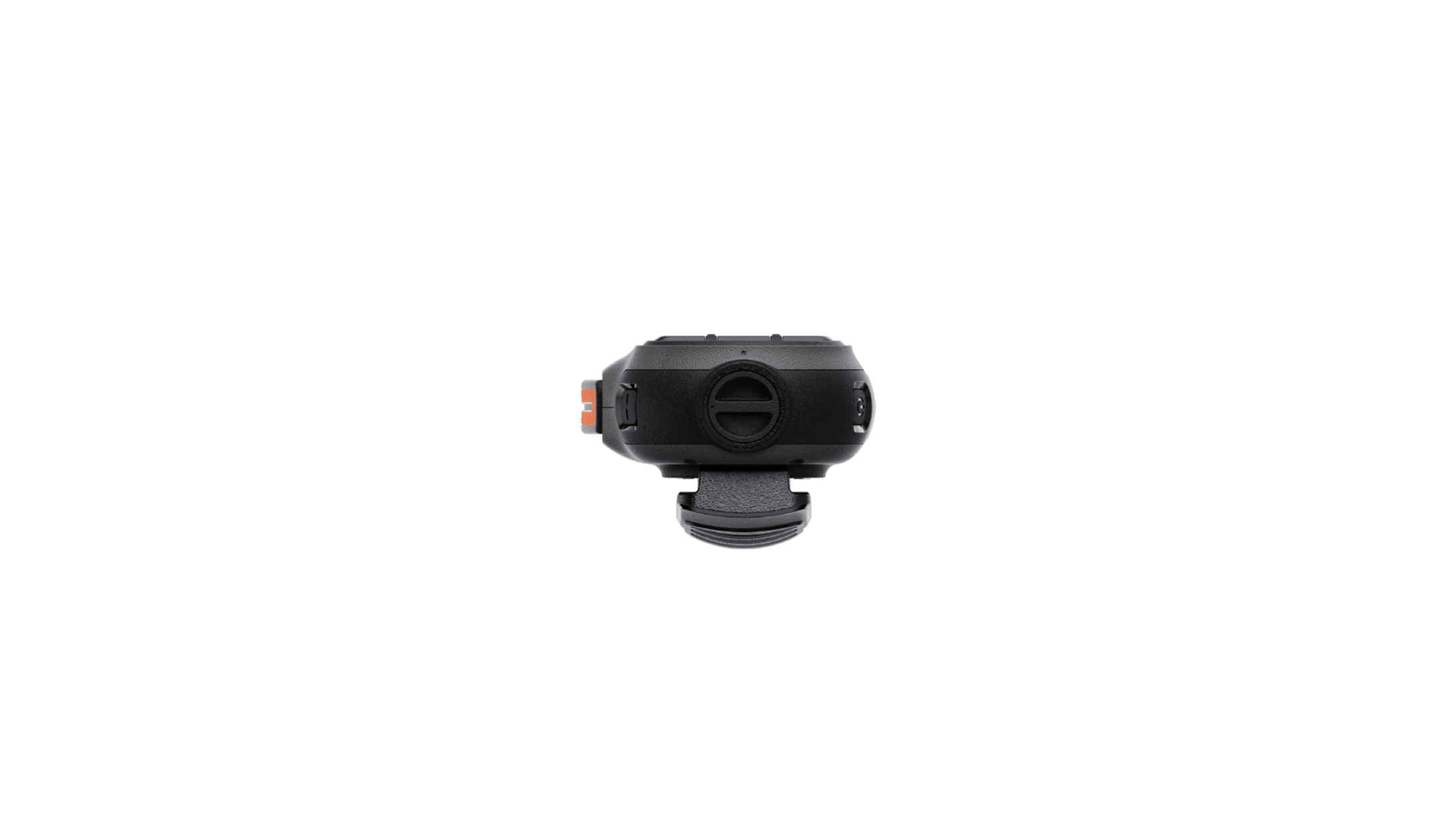

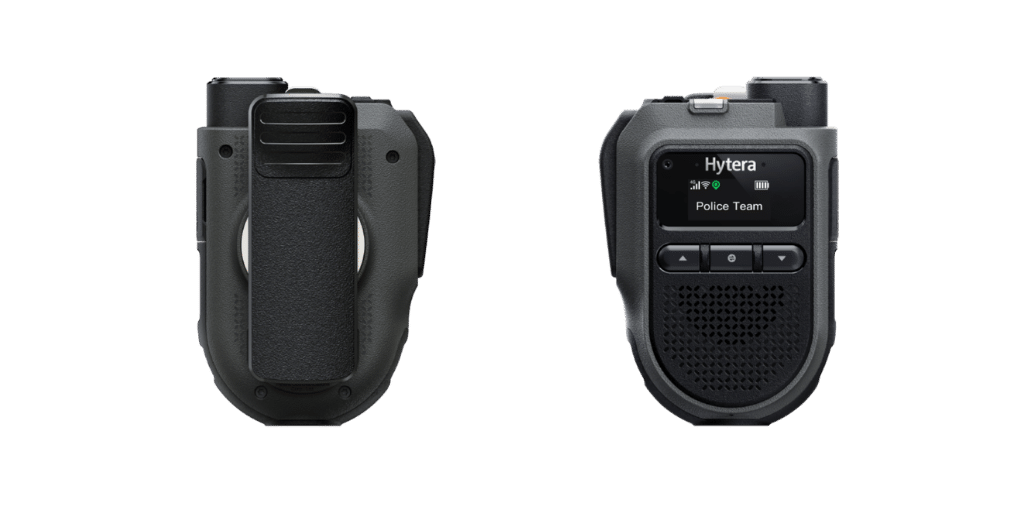

W60 POC Wearable MCS Radio
Hytera Canada's W60 is a wearable MCS radio that delivers mission-critical voice, video and data services. It works seamlessly as a remote speaker microphone for your existing PMR radios, switching to broadband when out of coverage, and also serves as a lightweight standalone MCS radio. Designed for sectors such as public safety, mining, airport, transportation, and security, it ensures uninterrupted communication at the critical moment.
LOW PROFILE ANTENNA
CURVED PTT BUTTON
0.96 INCH SCREEN (160 X 80 PIXELS)
2W – 3W SPEAKER
8MP CAMERA
Functions
HIGH EXPANDABILITY. BEST OF BOTH WORLDS.
The W60 works as a wired RSM for existing PMR radios and automatically switches to broadband MCX networks when out of coverage. It ensures continuous Push-to-Talk communication without changing existing systems or workflows. It can also operate as a standalone lightweight MCS radio for flexible field use.
AUDIO, ON ANOTHER LEVEL.
The W60 features a 3W speaker delivering up to 99 dB output for clear communication in noisy environments. AI noise cancellation reduces background noise by up to 40 dB. It ensures reliable voice clarity in demanding operational settings.
ONE CAMERA. DUAL PURPOSES.
The integrated camera supports real-time video streaming to command centers for improved situational awareness. It also enables instant photo and video capture for on-site documentation. Data can be securely stored via up to 512GB SD card for operational traceability.
COMFORTABLE TO USE
Weighing only 156 grams, the W60 is designed for all-day wearable comfort. Its ergonomic curved PTT key allows fast and intuitive operation by touch. It supports efficient communication in mobile and high-pressure environments.
MCX. ALWAYS CONNECTED.
The W60 supports mission-critical MCX services including voice, video, and data communication. It ensures service priority with QCI 65, 67, 69, 70 and eMBMS support. This helps maintain reliable communication even under network congestion.
ALWAYS POWERED.
The 2800mAh battery supports up to 24 hours of operation on a single charge (10-10-80). When needed, it can draw auxiliary power from a connected PMR radio to extend runtime. This ensures longer operation for extended shifts.
Standard Accessories for W60 POC Wearable MCS Radio
Programming
PC143
Programming Cable – USB Type C
Programming Cable – USB Type C
Carry
BC48
Belt Clip
Belt Clip
Optional Accessories for W60 POC Wearable MCS Radio
Audio
EHS24
C-Style Earpiece with Push-to-Talk Mic
C-Style Earpiece with Push-to-Talk Mic
EAS07
Earpiece with in-line PTT & Transparent Acoustic Tube
SM27W2
Bluetooth Remote Speaker Mic with charging cable
Bluetooth wireless remote speaker microphone finished (IP67)
EHW08
Bluetooth Earpiece with PTT button and microphone
Bluetooth Earpiece with PTT button and microphone
Carrying
POA207
Protective Case with Hand Strap for PNC560
BRK37
Protective Case with Mounting Bracket PNC560
BC39
Belt Clip
Belt Clip
Charger
CH20L19
PNC560 Desktop Charger
Protection Plan
HyTalk Care
HyTalk Care
The HyTalk Care Protection Program covers repairs for one accidental damage instance within two years of purchase. Must be purchased at the time of initial purchase of the PoC device.
Systems that work with W60 POC Wearable MCS Radio
Systems
Hytera HyTalk Nationwide
Hytera HyTalk OnSite and OnSite Plus
Own Your Own Push-to-Talk over Cellular System
Hytera HyTalk Connect
Integrates DMR Radio networks with Push-to-Talk over Cellular and third party networks
HyTalk PoC Dispatch
Web-based PoC Dispatching Application
Technical Specifications
| Weight | 156g (without belt clip & cable) |
| Operating System | Android 12 |
| Memory | 2GB RAM + 16GB ROM |
| Peripheral Interface | 3.5 mm audio jack USB Type-C port（side）-charging & data transfer USB Type-C port（bottom）-to 13-pin |
| Display | 0.96 inch, 160 x80 pixels |
| Card Slots | 1* SIM, 1* TF |
| Battery | 2800mAh, non-replaceable, support battery anti-counterfeiting design, 3.85V power supply |
| Dimensions | 89.5mm×58mm×27.5mm (exlucing local protrusions) |
| Camera | Front 8MP |
| Operating Temperature | -20℃to +60℃ |
| Storage Temperature | -30℃to +70℃ |
| ESD | IEC 61000-4-2: (ESD)± 12 kV (Air)；±8 kV (Contact) |
| Dust & Water Protection | IP68 |
| Vibration,Drop&Shock | 1.5m |
| Output | 2 W (rated), 3 W (max.) |
