HP50X Intrinsically Safe DMR Two-Way Radio

H-Series Professional DMR Two-Way Radio with Optional GPS and Bluetooth

Hytera HP50X series two-way radios are designed with a perfect balance of durability, functionality, and convenience. They are ideal for industries such as construction, manufacturing, and public safety.

The HP50X series radios offer exceptional audio quality and clarity, allowing users to stay connected over long distances. They are also equipped with advanced noise-cancellation technology and powerful speakers.

The Hytera HP50X series two-way radios provide reliable and efficient communication in demanding environments, such as construction sites, public safety operations, and smooth event management.

Data Sheet Owner's Manual

Functions

UL913 INTRINSICALLY SAFE

Certified by the SGS agency and in strict compliance with the UL913 and TIA4950 standards, the radio is specifically designed for use in dangerous conditions with potentially combustible dust, flammable liquids, and explosive gas. No matter how extreme the working environment is, the radio can always provide reliable and efficient communications.

SUPERIOR AUDIO QUALITY

Purify your voice, and eliminate the noise. The HP50X delivers crystal-clear audio in any environment, thanks to AI-based noise cancellation. This technology suppresses any annoying feedback howling and filters out unwanted ambient noises. So you can feel like talking face to face in every call no matter where you are.

LONGER BATTERY LIFE90

The radio comes with a standard 2,400 mAh Li-ion battery and boasts the best-in-class power saver technology innovated by Hytera Energy-efficient Lab, so the radio can work up to 23 hours in digital mode and high power mode on a 5-5-90 duty cycle. Longer-lasting battery means that the radio can work for your people all the time to keep them connected, and further keeping connected is keeping safe.

ENHANCED GPS LOCATION TRACKING

Location tracking is crucial for personal safety, especially in emergency situations. The HP5 Series provides location updates to the dispatcher, thanks to the optional GPS, BDS, and GLONASS positioning systems. The dispatcher can receive the radio location that is automatically sent with the emergency call, and then allot resources for quick assistance or rescue.

MULTIPLE SAFETY MECHANISMS

The radio has a suite of proactive approaches to safety. It can intelligently detect whether the battery is anti-counterfeiting and explosion-proof, preventing the risk or fire and explosion posed by the use of non anticounterfeiting and non-explosion-proof battery. Also this radio provides Lone Worker and Emergency Alarm to make your people call for help quickly in case of an emergency.

HIGH RX SENSITIVITY

When you go further out, you may encounter degraded communications due to a weak radio signal. With the 0.18μV (‒122dBm) sensitivity, the HP50X provides exceptional communication coverage. It ensures reliable communications even at the far edge of coverage with weak signals. Wherever you go in the workplace, you can always keep connected.

RUGGED DESIGN

The HP50X is built to withstand the harsh conditions that come with all kinds of industry fieldwork. The radio housing is made of polycarbonate with excellent abrasion and heat resistance. And the texture on the back of the radio is a non-slip design. More importantly, this tough radio is IP67-rated and meets stringent MIL-STD-810H military standards for protecting against dust, water, vibrations, 1.5-meter drops, extreme temperatures, and more.

USB TYPE-C, EASY TO PROGRAM AND CHARGE

The USB Type-C port fits all of your needs in the non-explosionproof area — programming, upgrading and charging. So it greatly facilitates you to manage and use the radio.

Standard Accessories for HP50X UL913 Intrinsically Safe DMR Two-Way Radio

Battery

BL2301-Ex

Intrinsically Safe Li-ion Battery (2400 mAh)

Frequency Range	400-470MHz 136-174MHz
Channel Capacity	256
Zone Capacity	16
Channel Spacing	12.5kHz/20kHz/25kHz
Operational Voltage	7.4V (rated)
Battery	2400 mAh Li-ion
Battery Life (5/5/90)	23h (GNSS OFF) 21h (GNSS ON)
Weight	300g
Dimensions (H x W x D)	119 mm x 55 mm x 33.5 mm
Frequency Stability	±0.5ppm
Antenna Impedance	50Ω
Bluetooth	BT 5.3

Time to First Fix Cold Start	<60 Seconds (Typical TTFF)
Time to First Fix Hot Start	<10 Seconds (Typical TTFF)
Horizontal Accuracy	<5 meters Receiver

Digital Sensitivity	0.18μV/BER5%
Analog Sensitivity	0.18μV (12dB SINAD); 0.16μV (Typical) (12dB SINAD)
Adjacent Selectivity	TIA-603: 60dB@12.5kHz; 70dB@20/25kHz ETSI: 60dB@12.5kHz; 70dB@20/25kHz
Spurious Response Rejection	TIA-603: 70dB@12.5/20/25kHz ETSI: 70dB@12.5/20/25kHz
Intermodulation	TIA-603: 70dB@12.5/20/25kHz ETSI: 65dB@12.5/20/25kHz
Hum and Noise	40dB@12.5kHz; 43dB@20kHz; 45dB@25kHz
Rated Audio Power Output	0.5W
Rated Audio Distortion	≤3%
Audio Response	+1 to -3dB
Conducted Spurious Emission	<-57dBm
Blocking	TIA-603: 80dB ETSI: 84dB

RF Power Output	UHF: 1W/4W VHF: 1W/5W
FM Modulation	11K0F3E@12.5kHz 14K0F3E@20kHz 16K0F3E@25kHz
4FSK Digital Modulation	12.5kHz Data Only: 7K60FXD, 12.5kHz Data and Voice: 7K60FXW
Conducted/Radiated Emission	-36dBm＜1GHz; -30dBm＞1GHz
Modulation Limiting	±2.5kHz@12.5kHz;±4.0kHz@20kHz; ±5.0kHz@25kHz
FM Hum and Noise	40dB@12.5kHz; 43dB@20kHz; 45dB@25kHz
Adjacent Channel Power	60dB@12.5kHz; 70dB@20/25kHz
Audio Response	+1 to -3dB
Audio Distortion	≤3%
Digital Vocoder Type	AMBE+2 /SELP

H-Series Professional DMR Two-Way Radio with Optional GPS and Bluetooth

RUGGED DESIGN

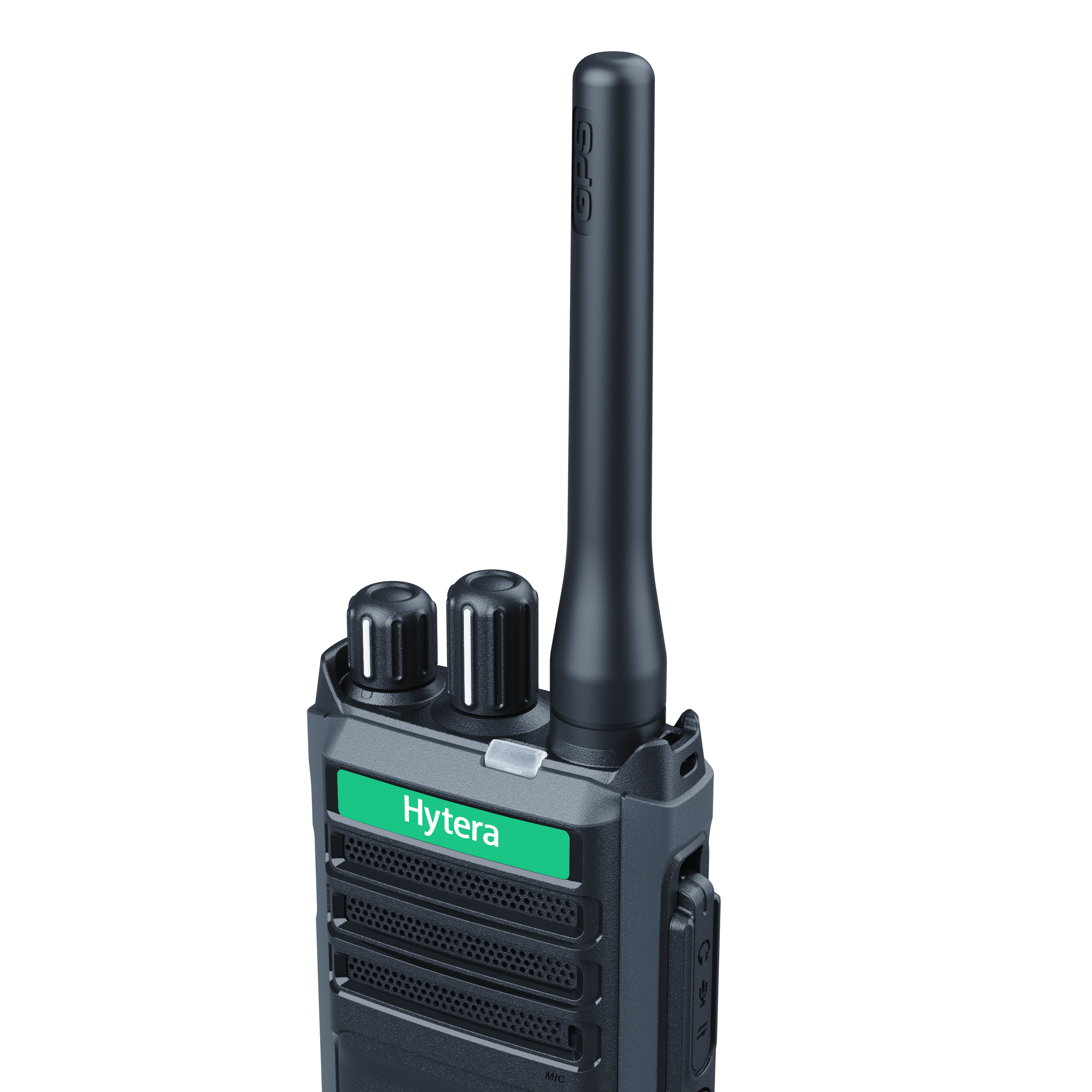

LED INDICATOR

END TO END ENCRYPTION

AI NOISE SUPPRESSION

WATER PORTING SPEAKER

PUSH-TO-TALK BUTTON

USB C CHARGING PORT

Functions

UL913 INTRINSICALLY SAFE

SUPERIOR AUDIO QUALITY

LONGER BATTERY LIFE90

ENHANCED GPS LOCATION TRACKING

MULTIPLE SAFETY MECHANISMS

HIGH RX SENSITIVITY

RUGGED DESIGN

USB TYPE-C, EASY TO PROGRAM AND CHARGE

Standard Accessories for HP50X UL913 Intrinsically Safe DMR Two-Way Radio

Battery

BL2301-Ex

Carrying

RO03

Wrist Strap

BC48

Belt Clip

Charger

CH10L30

PS1014

Standard Switching Power Adapter

Optional Accessories for HP50X UL913 Intrinsically Safe DMR Two-Way Radio

Audio

EHW08

Bluetooth Earpiece with PTT button and microphone

SM27W2

Bluetooth Remote Speaker Mic with charging cable

ESW01

Bluetooth Earpiece with charger(requires PS1030 power adapter)

POA121

Bluetooth Ring PTT

ACN-02

PTT and Microphone cable

ES-01

Earbud without Earpiece (Receive-Only)

ES-02

Earbud with Acoustic Tube (Receive-Only)

EH-01

C-Style Earpiece (Receive-Only)

EH-02

Swivel Style Earpiece (Receive-Only)

EHS17

Swivel Style Earpiece (Receive Only)

EHS18

C-Style Earpiece (Receive Only)

EAS03

Receive-Only Transparent Acoustic Tube Earpiece

EAN21

3-Wire Earpiece with Acoustic Tube, Microphone and PTT (Beige)

EAN24

Earpiece with Acoustic Tube and In-line PTT (Black)

EHN26

C-style Earpiece with In-line PTT and Microphone (Black)

SM26N1

Remote Speaker Microphone (with emergency button)

SM26N2

Remote Speaker Microphone (with emergency button)

ECN21

Heavy duty noise-cancelling headset

Antenna

AN0155H13

VHF/GPS Antenna (136-174MHz/1575MHz)

AN0155H15

VHF/GPS Antenna (146-164MHz/1575MHz)

AN0158H06

VHF/GPS Antenna (153-164MHz/1575MHz)

AN0148H07

VHF/GPS Antenna (144-154MHz/1575MHz)

AN0168H05

VHF/GPS Antenna (163-174MHz/1575MHz)

AN0435H25

UHF/GPS Antenna (400-470MHz/1575MHz)
