H-Series Professional DMR Compact Repeater

Repeater

H-Series Professional DMR Compact Repeater

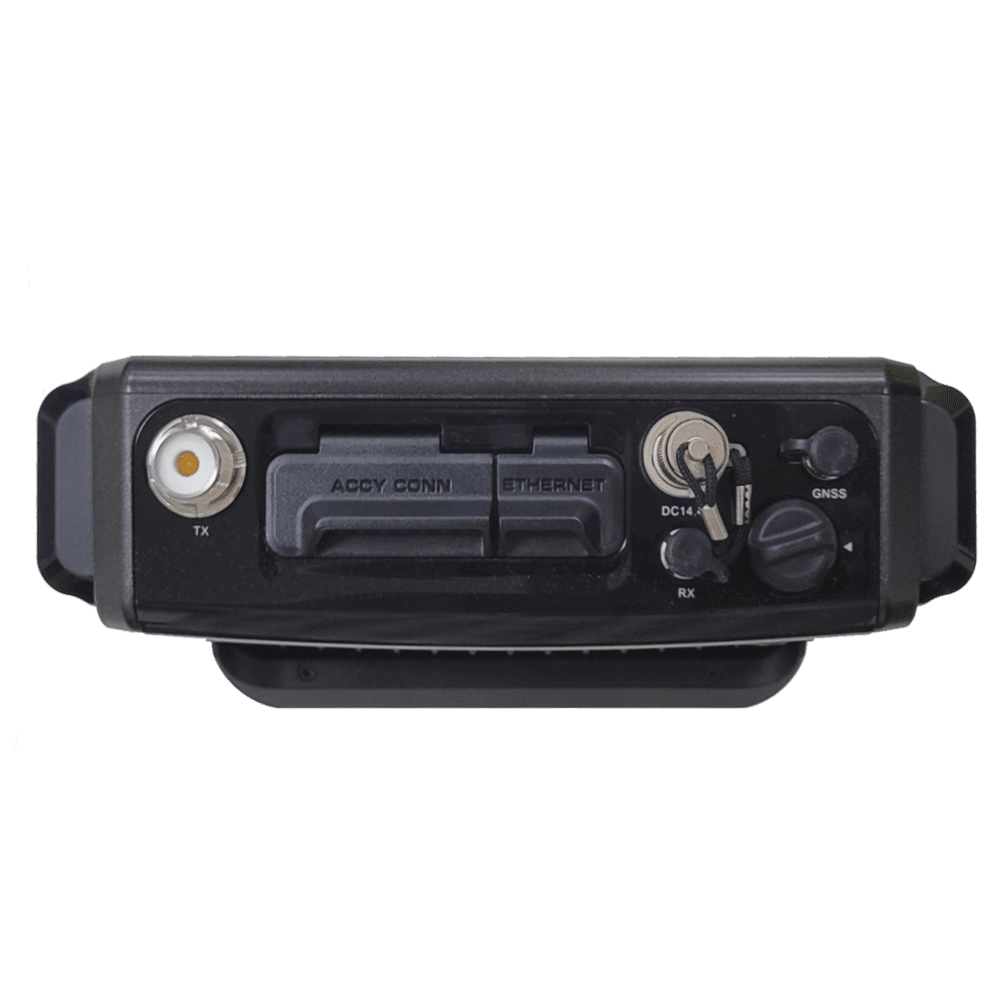

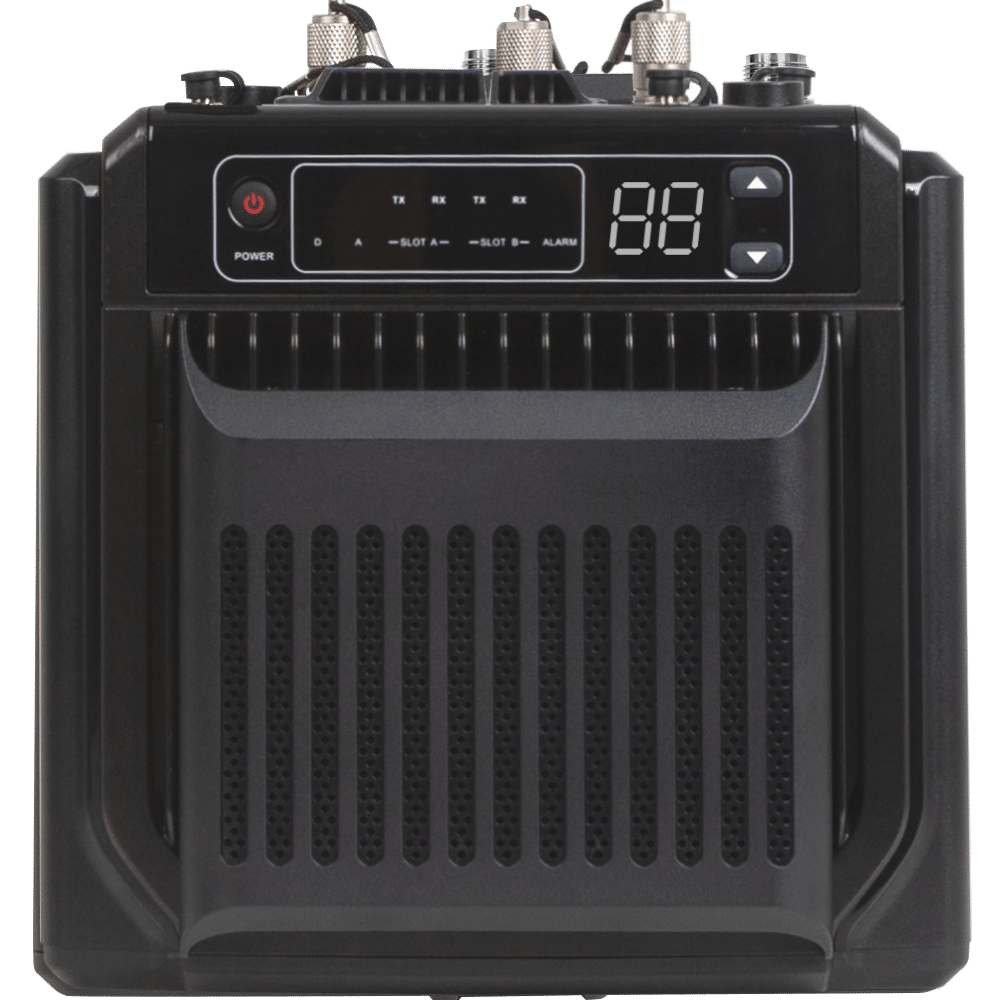

The HR652 is the next generation in compact DMR repeaters designed to expand radio range with consistent, reliable, and seamless voice and data communications.  It is fully compliant with the DMR standard with TDMA digital technology that provides 2 simultaneous voice channels to double voice channel capacity.

  • Ultra Compact for Flexible Installations and Portability
  • Optional Battery for Mobile Applications and Backup Power
  • Interconnect Multiple Repeaters with IP-Connect
  • Supports both Analog and Digital modes
Data Sheet Owner's Manual Quick Start Guide

LIGHTWEIGHT AND COMPACT

5

LITHIUM POLYMER BATTERY

5

RUGGED DESIGN

5

BUILT-IN BLUETOOTH

5

POWERFUL ANTENNA

5

360 SMART KNOB

5

EASY ACCESS EMERGENCY BUTTON

5

OLED DISPLAY

5

END TO END ENCRYPTION

5

AI NOISE SUPPRESSION

5

WATER PORTING SPEAKER

5

PUSH-TO-TALK BUTTON

5

PROGRAMMABLE BUTTONS

5

VIBRATE MODE

5

MICRO SD CARD

5

Functions

Ultra-Compact Form Factor Farther Coverage

Weighing only 4 pounds, 6 ounces and measuring less than 7” tall (without the optional battery) the HR652 delivers unprecedented performance in a compact form factor. It can be deployed in portable applications or be installed on any at surface in areas with limited wall space.

ANALOG & DIGITAL AUTO SWITCH

The HR652 can operate in analog mode, DMR mode, or dynamic mixed digital/analog mode, which automatically switches between analog and digital calls, and provides an ideal solution for smooth analog to digital migration with minimal investment.

RELIABLE OPERATION

The HR652 is built to perform in harsh environments with MIL-STD-810H compliance for ruggedness and impact resistance, and IP54 rated for dust and water intrusion. The HR652 can be configured for 25W high power transmission or variable Wattage low power transmission for localized coverage and preventing interference

HIGHER SECURITY

The HR652 supports Digital End-to-End and Overthe-Air Encryption with optional ARC4 and AES advanced encryption algorithms.

BUILT-IN BLUETOOTH

HM652 models that feature Bluetooth support audio handset accessories to improve safety and productivity during in-vehicle communications

Farther Coverage

The HR652 features industry-leading RX sensitivity and 25 Watts output power, increasing the effective communication range for DMR radios throughout a campus, or on each oor of a high-rise building. It covers more area than other compact repeaters, delivering cost-effective coverage for the entire facility. The HR652 also functions as a Single Frequency Repeater that uses both DMR timeslots to receive and forward calls over a single frequency in Direct Mode.

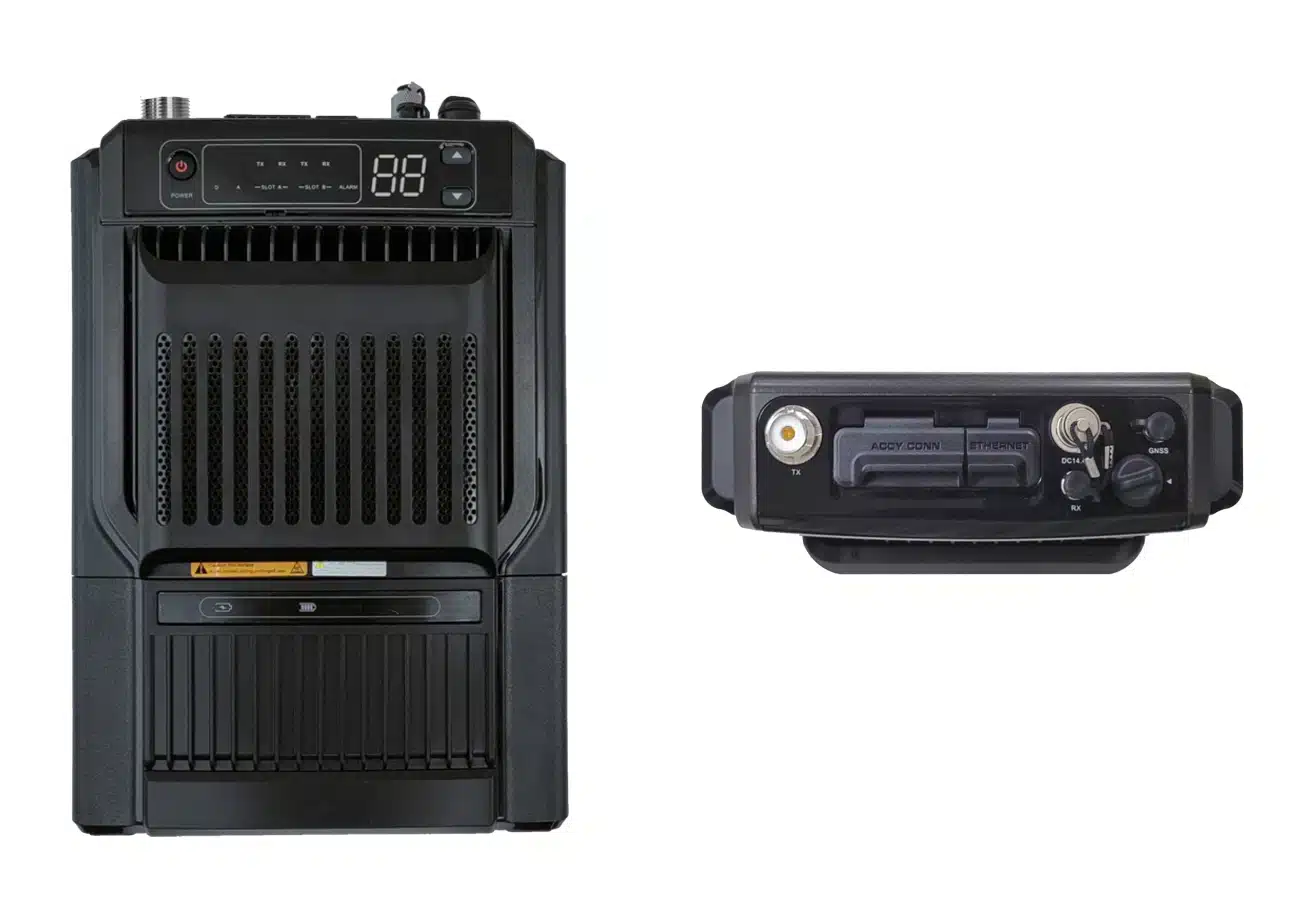

Optional Battery Power

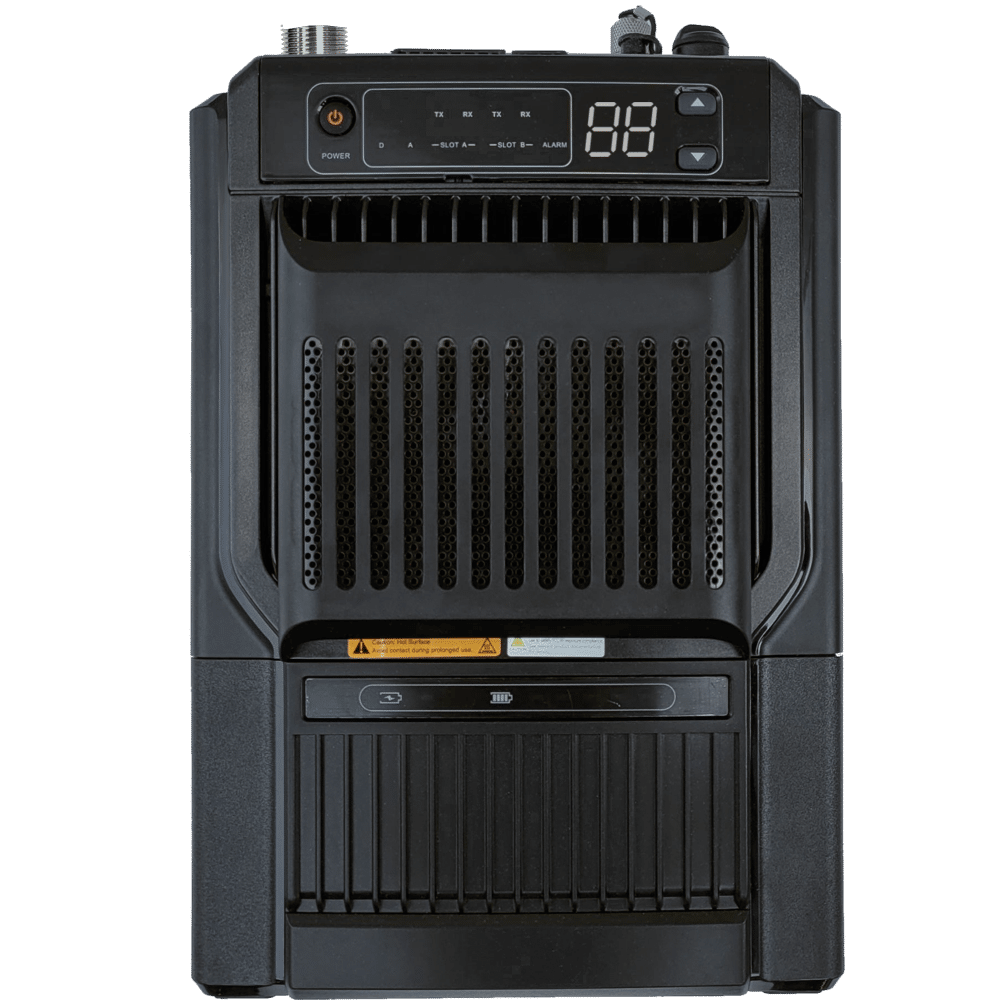

The HR652 features an optional battery for portable applications and for battery backup in xed indoor installations in the event of a power outage. The 12.5Ah large-capacity battery can provide up to 4 hours at 25W. Fast charging technology enables the battery to be fully charged in just 3.5 hours with the optional AC/DC power adapter 100W fast charger.

Portable

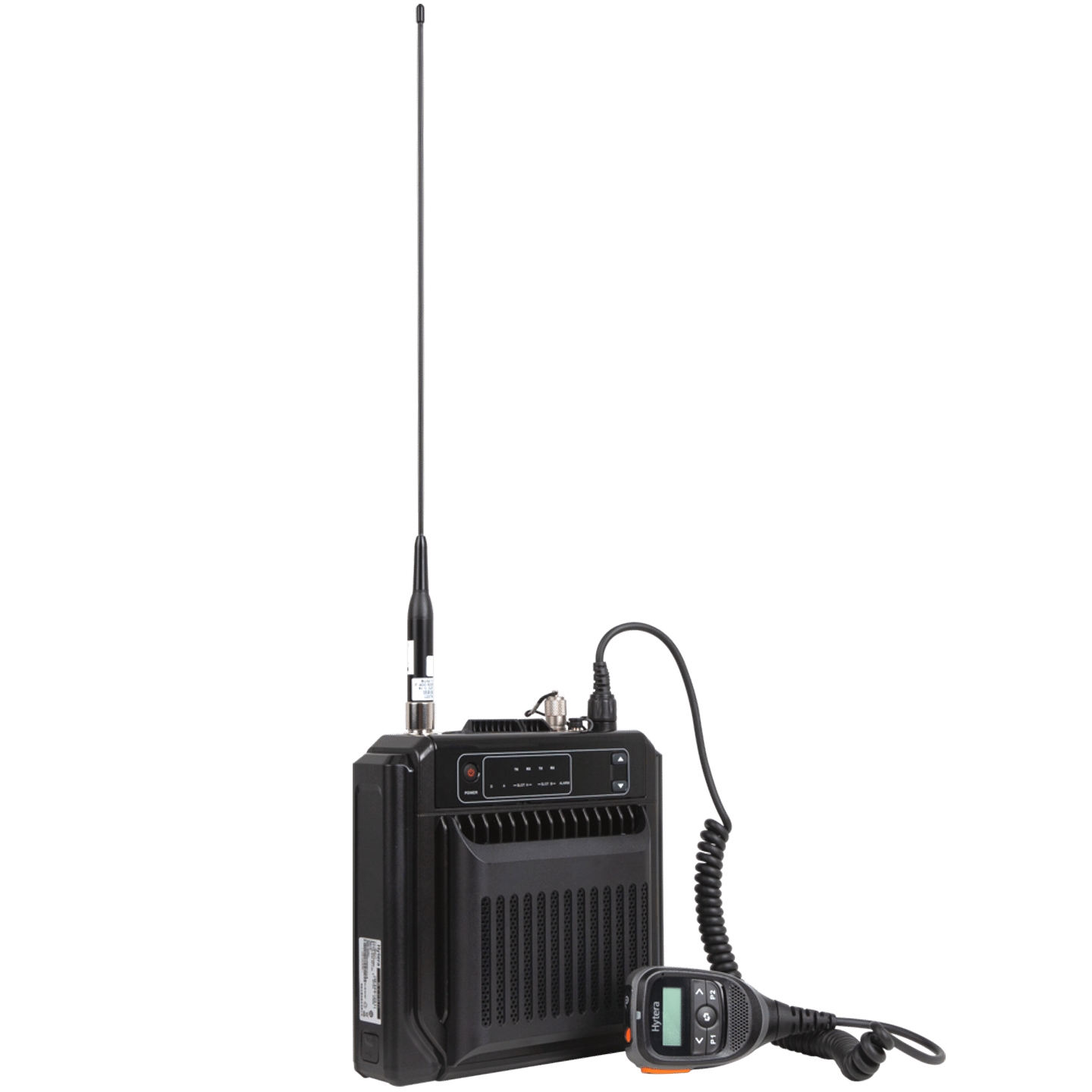

The HR652 can be equipped with the optional battery, dedicated antenna, GPS, and a light backpack for mobile search and rescue operations. It can also be deployed in vehicles for mobile coverage and powered by the vehicle battery. The HR652 can be turned on and used immediately upon arriving at the site. The ultra-light design can also be used with drones to achieve a wider range of signal coverage

HANDHELD CONTROL HEAD

The Handheld Control Head provides easy operation with a convenient location to control power, switch channels or contacts, adjust volume, or view messages.

Standard Accessories for H-Series Professional DMR Compact Repeater

Audio

SM25A1

Remote Speaker Microphone with LCD Display (for use with MD652i/MD652iG mobile radios only)

Ergonomically designed and IP54 compliant remote speaker microphone with LCD display for radio status monitoring.

View Product

Charger

PWC10

DC Power Cable (10ft)

10ft (3M) DC power cable for mobile radios

View Product

Optional Accessories for H-Series Professional DMR Compact Repeater

Audio

SM09D1

External Speaker (15W) with DB26 pin audio port

External speaker with clear voice output and adjustable bracket, to be used with mobile radios (15W). This is mountable on a horizontal or vertical surface and has an adjustable bracket.The large speaker with high output power provides clear audio even under noisy environments. DB26 pin audio port.

View Product

SM16A1

Portable Microphone (IP54)

IP54 compliant portable microphone with 10-pin aviation connector to be used with mobile radios

View Product

SM10A1

Table Microphone with Large PTT

Table microphone with large PTT and lockable monitor key enabling convenient and efficient operation

View Product

SM16A2

Portable​ Microphone (IP67)

Rugged, reliable and IP67 compliant portable microphone ensures excellent peformance in challenging environments. For use with repeater and mobile radios

View Product

Charger

PWC03

AC POWER CORD

AC POWER CORD

View Product

PS22002

External Power Supply (300W)

300W external power supply for mobile radios and repeaters

View Product

PWC31

Power Cord

12AWG 2pin red/black power cord, 600V AWM UL1015, 3.165m (10.4 Ft)

View Product

Installation

BRK12

Installation Kit for Power Pack (Black)

Installation of up to two external power packs (PS22002) in a 19″ equipment rack

View Product

Programming

PC110

back-to-back cable

HM782 to HR1062 back-to-back cable for analog to digital cross or UHF to VHF cross (audio & control lines), DB26 to DB26, length 60cm (23.6 in).

View Product

PC142

Wireless Link Back-to-Back Cable

HM782 to HR1062 back-to-back cable for wireless link applications (data link), DB9/M to DB26/M, 1m

View Product

PC37

Programming Cable

Programming cable for mobile radios and repeater

View Product

PC40

Programming Cable (DB26/USB)

Programming cable with DB26 plug for mobile radios and repeater

View Product

PC49

Back-to-Back Data Cable

Back-to-Back data cable for mobiles and repeaters

View Product

POA147

Backup Cable

HM782 to HR1062 back-to-back cable, DB26 to DB26.

View Product

PC47

Programming cable (USB) with toggle switch

Programming cable with toggle switch to use with mobile radios and repeaters

View Product

Systems that work with H-Series Professional DMR Compact Repeater

Systems

DMR IP Site Connect

Connect Repeater Sites with IP Networks

View Product

SmartOne DMR Dispatch

Unified Communications and Dispatching

View Product

DMR Tier III

Digital Radio Trunking Systems

View Product

Technical Specifications

General

Frequency Range UHF 400-470MHz
Channel Capacity 1,024 Channels
Channel Spacing 12.5kHz / 20kHz / 25kHz
Operational Voltage DC Power Input: 14.4V 15% ± Battery Voltage: 12-16.8VDC
Current Drain DC: Standby ≤0.35A, Transmitting 10W ≤3A, 25W ≤6A AC: Standby ≤0.35A, Transmitting ≤1.2A
Weight 4lb, 6oz (2.0 kg) without battery
Dimensions (HxWxD) 7 15/16” x 8 5/16” x 3 3/16” (201x211x80mm)
Frequency Stability ± 0.5ppm
Antenna Impedance 50Ω
Battery 14.4V/125Ah/1,800W
Battery Life (50-50 Duty Cycle) High Power setting 25W: 4 hours Low Power setting 10W: 9 hours
Duty Cycle 100%

Receiver

Digital Sensitivity 0.2μV (BER5 5%) 0.18μV (Typical)/BER 5%
Analog Sensitivity 0.16μV (Typical) (12dB SINAD) 0.18μV (12dB SINAD)
Adjacent Selectivity TIA-603: 65dB@12.5kHz, 75dB@20/25kHz ETSI: 60dB@12.5kHz, 70dB@20/25kHz
Spurious Response Rejection TIA-603: 80dB@12.5/20/25kHz ETSI: 80dB@12.5/20/25kHz
Intermodulation TIA-603: 75dB@12.5/20/25kHz ETSI: 70dB@12.5/20/25kHzd
Blocking 90dB
Hum and Noise 40dB@12.5kHz, 43dB@20kHz, 45dB@25kHz
Rated Audio Power Output ≤3%
Rated Audio Distortion +1 to -3dB
Audio Response +1 to -3dB
Conducted Spurious Emission Operating ≤1GHz: 1GHz: ≤-47dBm

Transmitter

RF Power Output High Power setting 5-25W (Continuous Adjustable) Low Power setting 1-5W (Continuous Adjustable)
FM Modulation 11K0F3E @ 12.5kHz 14K0F3E @ 20kKh 16K0F3E @ 25kHz
4FSK Digital Modulation 12.5kHz Data Only: 7K60FXD 12.5kHz Data and Voice: 7K60FXW
Conducted/Radiated Emission Operating: ≤1GHz: -36dBm, >1GHz: -30dBm Standby: ≤1GHz: -57dBm, >1GHz: -47dBm
Modulation Limiting ±2.5kHz @ 12.5kHz ±4.0kHz @ 20kHz ±5.0kHz @ 25kHz
FM Hum and Noise 40dB @ 12.5kHz, 43dB @ 20kHz, 45dB @ 20/25kHz
Adjacent Channel Power 60dB @ 12.5kHz, 70dB @ 20/25kHz
Audio Response +1 to -3dB
Audio Distortion ≤3%
Digital Vocoder Type AMBE+2TM
Digital Protocol ETSI-TS 102 361-1,-2,-3

Environmental

Operating Temperature -22°F to +140°F (-30°C to +60°C)
Storage Temperature -40°F to +185°F (-40°C to +85°C)
Dust and Water Intrusion IP54 Standard
Shock, Vibration, and Humidity MIL-STD 810H

Ordering Information

HR652-U1 Compact DMR Repeater UHF 400-470MHz, 5-25W, DMR Tier II & Analog Conventional Mode
