Two-Way Business Digital & Analog Radio

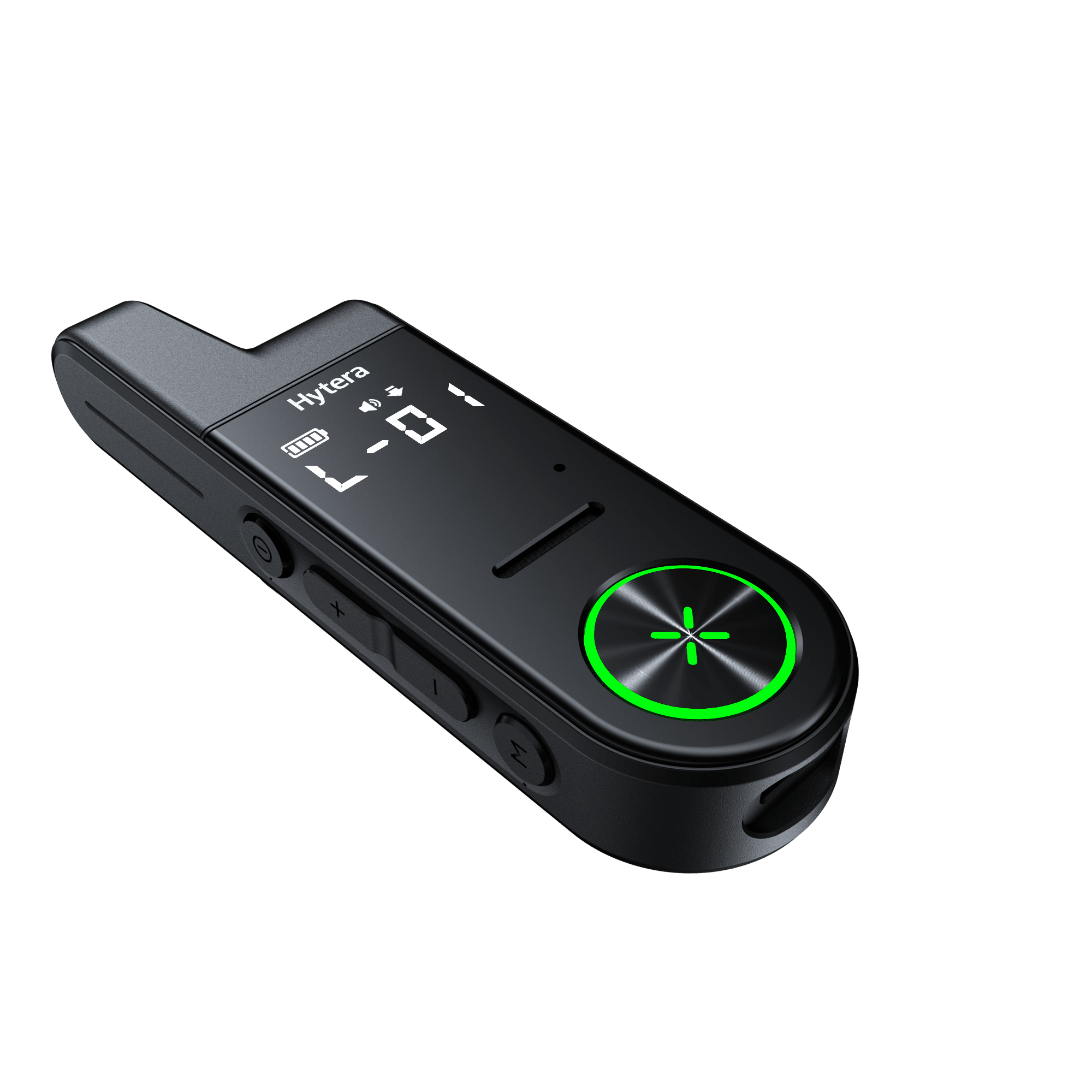

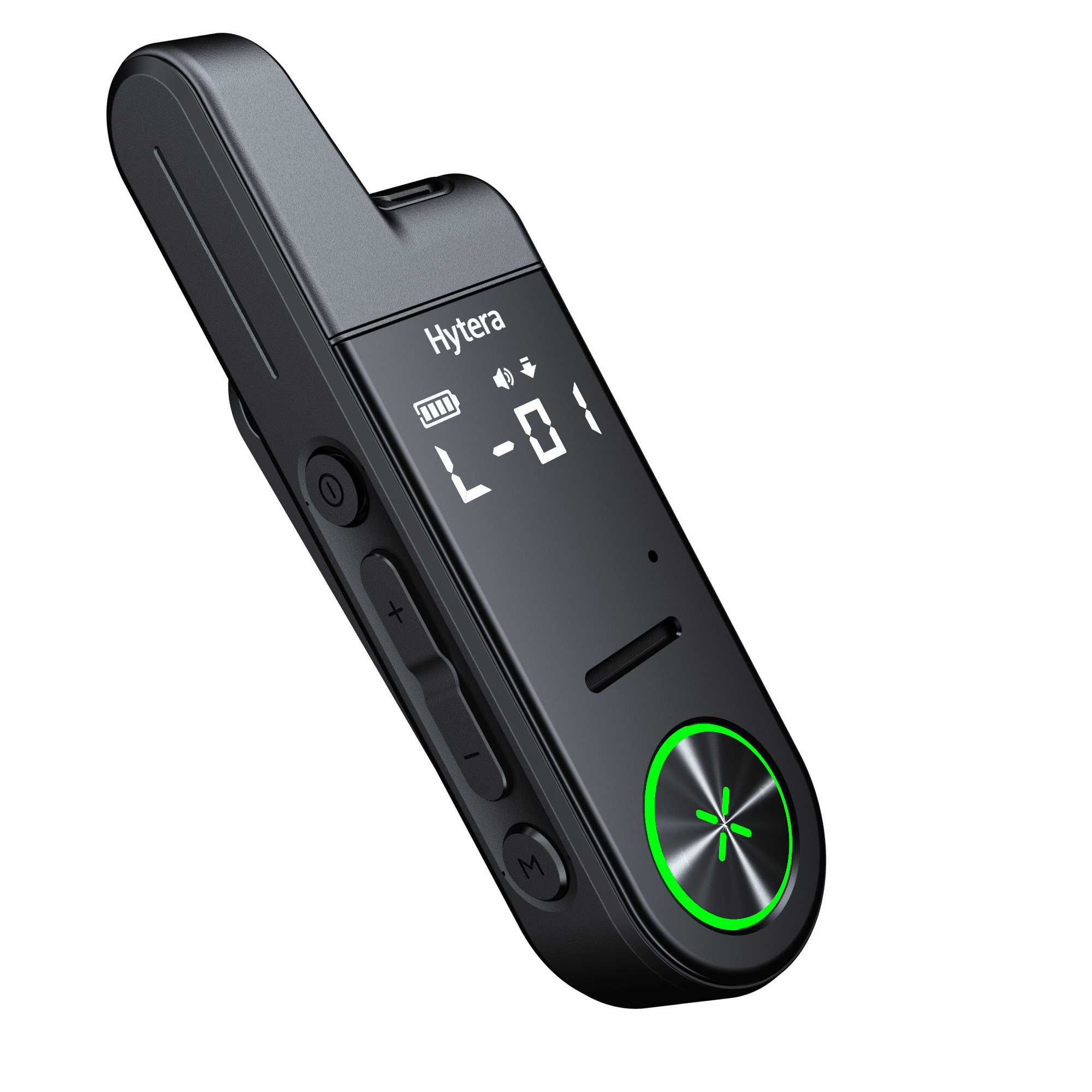

Hytera S1 mini is a tiny business-ready analog radio for restaurant, book store, or beauty salon, and more. It blends fashion and communication like never before—first-of-its-kind design, minimalist style, reliable PTT service, superb audio, long-lasting battery, and more.

This radio helps you stay better connected with your team while staying focused on your customers.

INTEGRATED ANTENNA

5

POWER ON/OFF BUTTON

5

USB TYPE-C PORT

5

PUSH TO TALK BUTTON

5

VOLUME/PROGRAM KEYS

5

SPEAKER

5

0.88 INCH SCREEN DISPLAY

5

3.5mm ACCESSORY PORT

5

Functions

FULL OLED DISPLAY

The HD OLED display shows you battery level, frequency, status, channel, and more. Additionally, you can create your own channel and radio names that are easy to remember and distinguish.

AI-BASED NOISE CANCELLATION

Filter out up to 30 dB noise thanks to professional AI-based noise cancellation algorithm. Your focus protected. Your productivity improved.

THINNER AND LIGHTER

Optimized body construction of 145 g (With belt clip) in weight, 29.5 mm in depth.

DIGITAL AND ANALOG FUNCTIONALITY

The radio is compatible with the existing radios and systems, regardless of digital or analog. The S1 Pro protects your assets in its way. More importantly, the digital error correction technology ensures the radio to deliver distortion-less voice and accurate data in a wider range.

PASSCODE ENABLED GROUP CHATS

Only those with the same passcode can join the group call. Protect the conversation against interference from neighboring groups.

FAST CHARGING & LONG BATTERY LIFE

2,200 mAh replaceable Li-Polymer battery for extra-long shifts
100% changed in 2.5 hours = 16-hour working time

Standard Accessories for S1-Mini Two-Way Business Digital & Analog Radio

Carrying

RO03

Wrist Strap

Nylon wrist strap

Audio

BM11

C-Style Earpiece

Optional Accessories for S1-Mini Two-Way Business Digital & Analog Radio

Charger

PC161

USB Type-C cable

PS2023

US-Standard Power Adapter

Power Adapter – Input: 100-240VAC, Output: 12VDC/2A

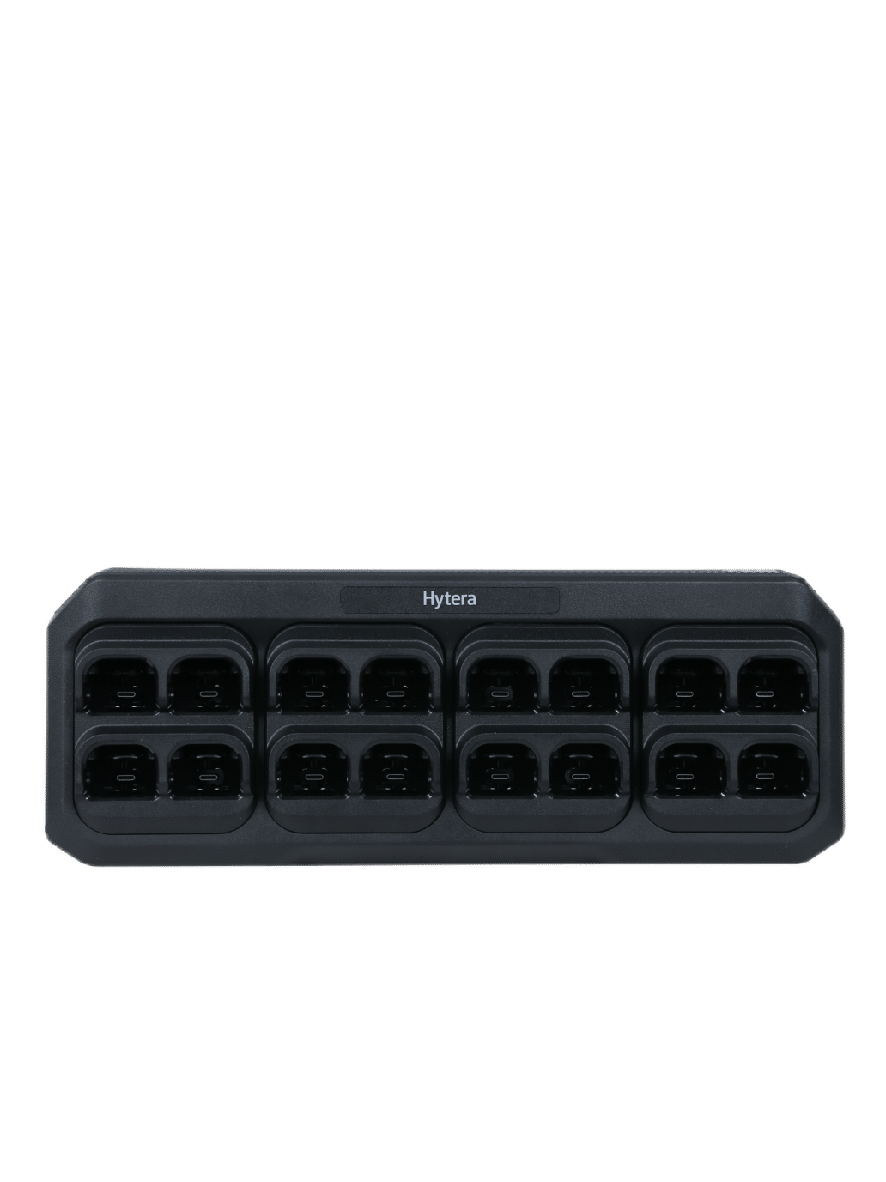

CM11

16 pockets scheme for S1 mini charging

Audio

EM31

Surveillance C-style Earpiece with inline Mic & PTT

Technical Specifications

General

Frequency Range 400-440 MHz, 430-470 MHz
Channel Capacity 16
Zone Capacity 1
Operating Voltage 3.8V (Rated)
Battery 750mAh Li-Polymer (Built-in)
Battery Life (5/5/90 Duty Cycle, High TX Power) With earpiece: 16 hrs (1W)/18 hrs (0.5W)
Dimensions (H x W x D) 99*30*16mm(without belt clip)
Weight (with antenna & battery) 48 g
Display 0.88 inch
BT (optional) BLE (only data) 5.0

Environmental

Operating Temperature -10℃~ +55℃
Storage Temperature -30℃ ~ +70℃
ESD ±4kV (Contact) ±8kV (Air)

Receiver

Sensitivity 0.14μV
Rated Audio Power Output 0.5W

Transmitter

Power Output 400-440 MHz, 430-470 MHz: 1W
Audio Response +1 to -3dB
Audio Distortion ≤3%
